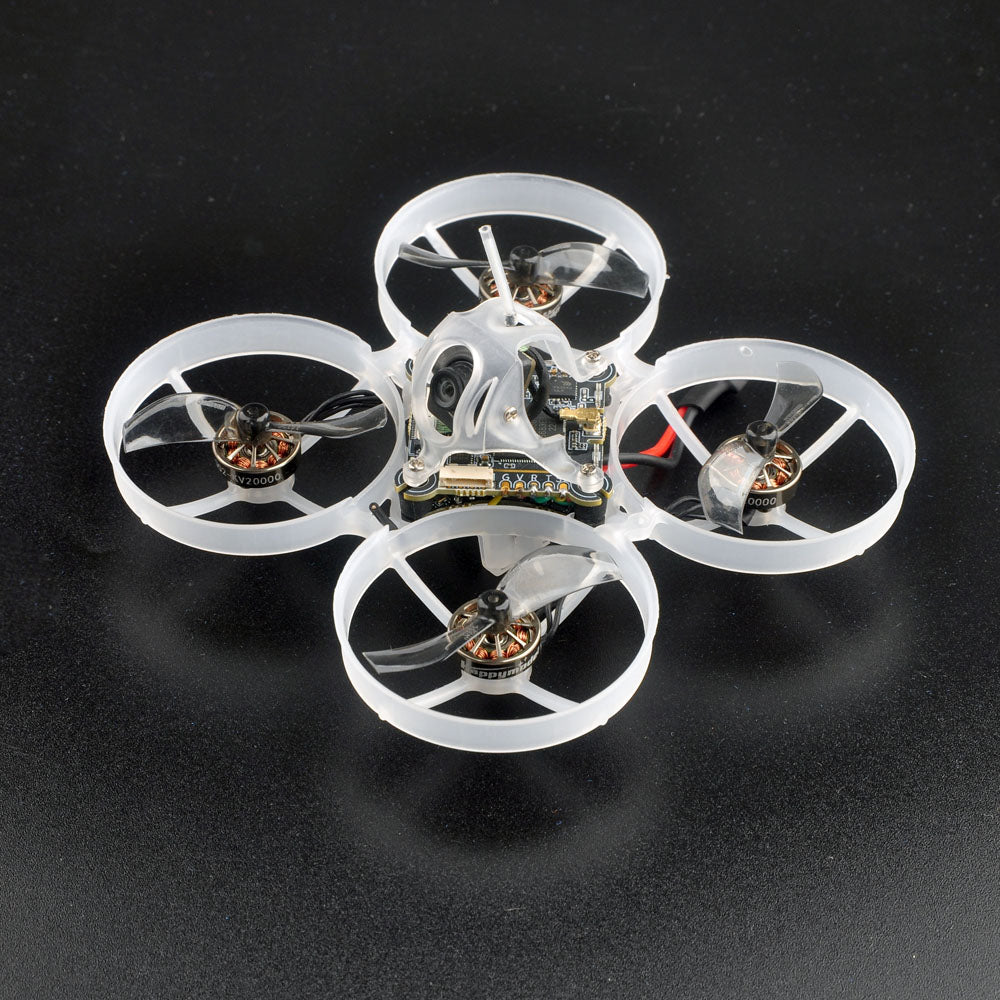

Introducing the Happymodel Moblite7 HDZERO Drone
Get ready to experience incredible flight performance and stunning visual quality with the Happymodel Moblite7 HDZERO, a lightweight yet powerful mini drone. The drone boasts a 75mm wheelbase frame and weighs just 29.5 grams without a battery, making it perfect for agile and stable flight. It is compatible with 1S Lipo and Lihv batteries utilizing a PH2.0 plug. With on-board features such as SuperbeeF4 Lite Flight Controller, Betaflight OSD, and built-in receiver options, the Moblite7 HDZERO is a dream come true for every drone enthusiast.
Features of the Moblite7 HDZERO Drone
Fly with Confidence: Flight Controller and Receiver Options
The Moblite7 HDZERO is equipped with a SuperbeeF4 Lite flight controller, featuring a powerful STM32F411CEU6 MCU running at 100MHz and 512K Flash. It also comes with a range of sensors, including MPU-6000, ICM20689, or BMI270 with SPI connection, ensuring accurate and stable flight performance. Choose between SPI ELRS 2.4GHz and SPI Frsky Receiver for seamless connectivity with your preferred transmitter.
Powerful and Efficient: Onboard 4-in-1 ESC
The onboard 4-in-1 ESC features EFM8BB21 MCU for efficient power management. It supports 1S LiPo/LiPo HV batteries (2.8V~4.35V) and boasts a maximum current of 5A, peaking at 6A for 5 seconds. The ESC is also programmable via BLHeliSuite and supports DSHOT150, DSHOT300, and DSHOT600 protocols by default.
High-Quality Video Feed: HDZero Camera and VTX
With the HDZero Nano Lite Camera and HDZero Whoop Lite VTX, your flight experience will be accompanied by stunning visuals. The ultra-sensitive CMos sensor provides excellent low-light performance, while the various FOV options ensure that you get the perfect shot every time. The VTX supports 25mW and 200mW RF output with SmartAudio, allowing for adjustments on the fly.
Durable and Easy to Maintain: Frame and Propeller Design
The drone's 75mm frame is constructed from durable materials that can withstand crashes. The Gemfan 1610-2 blades propellers are made of PC material and provide optimal lift and thrust. In case of damage, a spare canopy, propeller disassemble tool, and a screwdriver are included in the package for easy maintenance.
Package Includes:
- 1x Mobula7 v4 75mm frame + Canopy
- 1x Optional Receiver
- 4x EX1002 KV20000 Unibell brushless motor
- 4x Gemfan 1610-2 Blades Propeller CW
- 4x Gemfan 1610-2 Blades Propeller CCW
- 1x HDZero Whoop Lite VTX
- 1x HDZero Nano Lite Camera
- 1x Spare Canopy
- 1x Propeller disassemble tool
- 1x Screwdriver
Upgrade your flying experience with the Happymodel Moblite7 HDZERO drone, providing top-notch performance in a compact and lightweight package. Don't miss out on the opportunity to capture amazing aerial footage and enjoy hours of thrilling flight.
Product Specifications
SuperbeeF4 Lite Flight Controller
|
SPI ELRS version Firmware target: CrazybeeF4SX1280
SPI FRSKY version Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in SPI Frsky/ExpressLRS receiver
Built-in 5V 1A BEC
Built-in voltage detection
|
| Onboard 4IN1 ESC |
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
Currents: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT150/DSHOT300/DSHOT600
|
|
Onboard SPI ExpressLRS 2.4GHz Receiver
( SPI ELRS Version)
|
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Could bind with ELRS V2.0 firmware TX module
|
|
Onboard Frsky SPI D8 /D16 2.4GHz Receiver
( Compatible Frsky Receiver Version)
|
SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Based on CC2500 RF module Compatible with Futaba S-FHSS, Redpine protocol
|
EX1002 20000KV Motor
|
Configu-ration:9N12P
Stator Diameter:10mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm
Weight(g): 2.5g
No.of Cells(Lipo):1S only
|
Gemfan 1610-2 Blades Propeller
|
Weight:0.24g
Material: PC
Pitch:1 inch
Props Dia:40mm
Center Hole Dia:1.5mm
|
HDZero Whoop Lite VTX
|
1S Input
25mW/200mW RF Output-SmartAudio Support
25.5x25.5 M2 Soft Mounting- Antenna Retention
Removable Shielding Box- 32.5x32.5mm(29x29mm inner)
4.5grams/4mm Thickness (without shielding)
|
HDZero Nano Lite Camera
|
14x16x11 mm
1.5gram
0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
Excellent low light performance
Fov:
4:3: D:130° H:108° v:84°
16:9:D:122° H:108° V:65°
|
Product Images
